Destacar
Atex certified gas filling equipment
,refrigerant charging station with warranty
,explosion-proof refrigerant filling equipment
-
DoençaNovo
-
Indústrias aplicáveisFábrica
-
Peso (kg)300
-
Localização do showroomnenhum
-
Vídeo de saída de vídeoOferecido
-
Relatório de teste de máquinasNão disponível
-
Garantia de componentes principais1 ano
-
Componentes principaisMotor, bomba
-
TipoCompressor
-
Garantia1 ano
-
Serviço pós-venda prestadoEngenheiros disponíveis para máquinas de serviço no exterior
-
Resolução0,1g
-
Tensão380V/50Hz
-
RefrigeranteR22/R410A/R407C/R134A
-
Modelo noCM8600 R32 Sistema de carregamento de refrigerante
-
Precisão± 0,5%
-
Grau de vácuo5pa ~ 10pa
-
velocidade de carregamento60 ~ 260g/s
-
AplicaçãoAr condicionado, dispensador de água, freezer, geladeira
-
PORTAShanghai Ningbo Tianjin Qingdao
-
Lugar de origemJiangsu, China
-
MarcaCM
-
CertificaçãoCE, ATEX
-
Número do modeloCM8600
-
Quantidade de ordem mínima1 unidade
-
Preço$20,400.00/units 1-2 units
-
Detalhes da embalagemCaixa de madeira, palete para CM8600 Máquina de carregamento de preenchimento de refrigerante
-
Habilidade da fonte50 unidade/unidades por mês
Atex Certificated Gas Filling Equipment

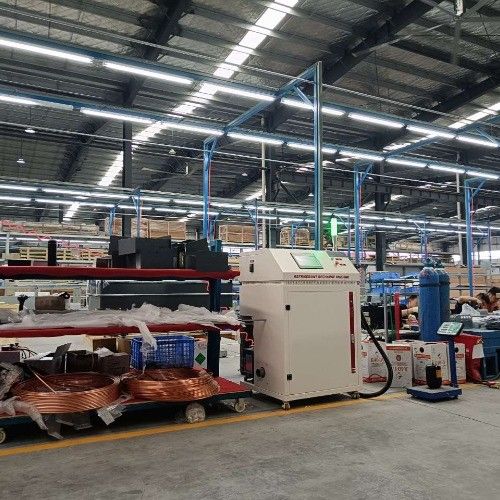

Chunmu Refrigerator Production Line Refrigerant Filling Station
Product Specifications
| Attribute | Value |
|---|---|
| Condition | New |
| Applicable Industries | Manufacturing Plant |
| Weight (KG) | 300 |
| Video Outgoing-Inspection | Provided |
| Warranty of Core Components | 1 Year |
| Core Components | Motor, Pump |
| Type | COMPRESSOR |
| Warranty | 1 Year |
| After-sales Service | Engineers available to service machinery overseas |
| Resolution | 0.1g |
| Voltage | 380V/50HZ |
| Refrigerant Compatibility | R22/R410A/R407C/R134A |
| Model No | CM8600 R32 refrigerant charging system |
| Precision | ±0.5% |
| Vacuum Degree | 5Pa~10Pa |
| Charging Speed | 60~260g/s |
| Application | Air conditioner, water dispenser, freezer, refrigerator |
| Port | Shanghai Ningbo Tianjin Qingdao |
Product Overview
The CM8600 Dual System Refrigerant Charging Machine is specially designed for high-speed refrigerant charging in refrigerator assembly lines. This professional-grade equipment features exceptional charging speed, high accuracy, and multiple functions for industrial applications.
Key Specifications: Compatible with CFC, HFC, and HC refrigerants, this machine can be customized to meet specific production line requirements.
Key Features
- CNC technology enables precise data processing with accurate and easy operation
- Charging/filling capability for liquid gases including R134a, R22, R407C, R410A (customizable for R600a, R290, R32)
- Siemens PLC with colorful touch screen control system
- High-accuracy flow sensors provide resolution of 1~0.1g
- Wonfulay pneumatic booster ensures stable pressure and large charging quantity supply
- Continuous charging capacity up to 99999g with charging rate of 60g~260g
- Automatic prompt function when refrigerant in cylinder is low
- Adjustable vacuum time and inspection leak time
- Wonfulay filling gun improves charging/filling speed
- Wonfulay high vacuum pump achieves quick vacuum of 5~10Pa
- Multiple functions: vacuum, inspection leak, charging/filling, refrigerant recovery
- Repeat filling accuracy ≤ ± 0.5%
- Portable design for easy movement between workstations
Product Images
Front View
Control Panel
Side View
Components
Filling Interface
Internal Components
Pneumatic System
Vacuum Pump
