Customizable ATEX Certificate Gas Injecting System for Fast and Accurate Refrigerant Charging at Production Line
-
Destacar
ATEX Certificate Gas Injecting System
,Customizable Gas Injecting System
-
CondiçãoNovos
-
Indústrias aplicáveisFabricação
-
Peso (KG)300
-
Localização da sala de exposiçãoNenhum
-
Inspecção de saída por vídeoFornecido
-
Relatório de ensaio da máquinaNão Disponível
-
Garantia dos componentes principais1 ano
-
Componentes essenciaisMotor, bomba
-
TipoCompressor
-
Garantia1 ano
-
Serviço pós-venda fornecidoEngenheiros disponíveis para serviços de máquinas no exterior
-
Resolução0.1g
-
Tensão380V/50Hz
-
RefrigeranteR22/R410A/R407C/R134A
-
Número do modeloCM8600 R32 Sistema de carregamento de refrigerante
-
precisão± 0,5%
-
grau de vácuo5Pa~10Pa
-
velocidade de carga60~260 g/s
-
AplicaçãoAr condicionado, dispensador de água, congelador, frigorífico
-
PortoXangai Ningbo Tianjin Qingdao
-
Lugar de origemJiangsu, China
-
MarcaCM
-
CertificaçãoCE, ATEX
-
Número do modeloCM8600
-
Quantidade de ordem mínima1 unidade
-
Preço$20,400.00/units 1-2 units
-
Detalhes da embalagemcaixa de madeira, palete para a máquina de carregamento de refrigerantes CM8600
-
Habilidade da fonte50 Unidade/Unidades por Mês
Customizable ATEX Certificate Gas Injecting System for Fast and Accurate Refrigerant Charging at Production Line
Customizable ATEX Certificate Gas Injecting System for Fast and Accurate Refrigerant Charging at Production Line
| Attribute | Value |
|---|---|
| Condition | New |
| Applicable Industries | Manufacturing Plant |
| Weight (KG) | 300 |
| Showroom Location | None |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Not Available |
| Warranty of core components | 1 Year |
| Core Components | Motor, Pump |
| Type | COMPRESSOR |
| Warranty | 1 Year |
| After-sales Service Provided | Engineers available to service machinery overseas |
| Resolution | 0.1g |
| Voltage | 380V/50HZ |
| Refrigerant | R22/R410A/R407C/R134A |
| Model No | CM8600 R32 refrigerant charging system |
| Precision | ±0.5% |
| Vacuum degree | 5Pa~10Pa |
| Charging speed | 60~260g/s |
| Application | Air conditioner, water dispenser, freezer, refrigerator |
| Port | Shanghai Ningbo Tianjin Qingdao |

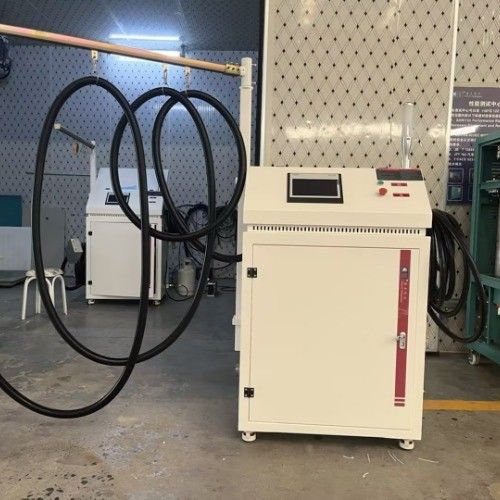

CM8600 Dual System Refrigerant Charging Machine for Refrigerator Assembly Line
The CM86 refrigerant charging machine is specially designed for fast speed refrigerant charging at production lines. It features high speed charging, high accuracy, and multiple functions. The machines are compatible with refrigerants of CFC, HFC, HC, etc. The machine can also be customized according to your special requirements.
Key Features
- Adopt CNC technology allowing data processing capability with accurate and easy operation
- Charging/filling liquid gas R134a, R22, R407C, R410A etc. (for R600a, R290, R32 can be customized)
- Siemens PLC and colorful touch screen control system
- High accuracy flow sensors provide precise data with resolution reaching 1~0.1g
- Wonfulay (our own brand) pneumatic booster ensures stable pressure and large charging quantity supply
- Continuous charging/filling quantity up to 99999g with charging rate of 60g~260g
- Automatic prompt function when refrigerant in the cylinder is low
- Adjustable vacuum time and inspection leak time according to requirements
- Wonfulay (our own brand) filling gun improves charging/filling speed
- Wonfulay (our own brand) high vacuum pump provides quick vacuum reaching 5~10Pa
- Includes vacuum, inspection leak, charging/filling, and refrigerant recovery functions
- Repeat filling accuracy ≤ ± 0.5%
- Easy to move
Product Images
